1. Dell Laser Printer 5100 Cn Manual

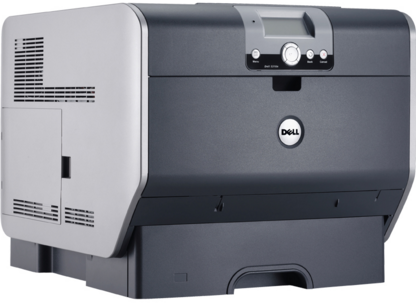

This page contained have download link of Dell 5100cn Printer Driver Download for. The Dell 5100cn is a color laser printer. Mac; Recent Comments.

. Dell™ Laser Printer 5100cn Owner’s Manual Look Inside For:.

Loading Paper. Setting Up for Local and Network Printing. Installing Printer Driver.

Using Your Printer. Maintenance. Contacting Dell w w w. C o m / s u p p l i e s s u p p o r t.

Order Printer Supplies Dell™ Printer Supplies are available only through Dell. You can order Printer Supplies online at www.dell.com/supplies or by phone. 877-INK-2-YOU Algeria Contact your distributor.

Argentina Contact your distributor. Australia 1300 030 290 Austria 08 20-24 05 30 35 Belgium 02.713 1590. Dell™ Laser Printer 5100cn Center output tray Operator panel Multipurpose feeder Standard 500-sheet tray For details on the optional 500-sheet tray module, 1000-sheet tray module, and other additional User's Guide options, see the Power switch Power cable connector Ethernet port. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names of their products. Disclaims any proprietary interest in trademarks and trade names other than its own.

Contents Dell™ Laser Printer 5100cn.3 1 Loading Paper.11 Loading the Standard Tray.12 Loading the Multipurpose Feeder.15 Loading Envelopes.17 2 Setting Up for Local Printing.19 Installing Printer Drivers.20 Connecting the Printer to the Computer Before Inserting the Drivers and Utilities CD.20. Canceling a Job From the Desktop.37 Software Overview.37 Printing Status Window.37 Status Window.37 Status Monitor Console.37 Dell Supplies Management System.38 User Setup Disk Creating Tool.38 Software Update.38 6 Maintenance.

39 Replacing the Imaging Drum.40 Removing the Used Imaging Drum.40. Contacting Dell.63 U.S. Terms and Conditions of Sale.79 Limited Warranties and Return Policy.81 Limited Warranty for Dell-Branded Hardware Products (U.S.

Only).81 Total Satisfaction Return Policy (U.S. Only).85 Limited Warranty Terms for Dell-Branded Hardware Products (Canada Only).85 Total Satisfaction Return Policy (Canada Only).88. Refer service or repairs, other than those described in the operating instructions, to a professional service person.

This product is designed to meet safety standards with the use of specific Dell-authorized components. The safety features of some parts may not always be obvious. Dell disclaims liability associated with use of non-Dell-authorized components. Section 1 Loading Paper Loading the Standard Tray Loading the Multipurpose Feeder Loading Envelopes Loading Paper. Load the print media used for the majority of your print jobs in the standard 500-sheet tray. Pull the tray out of the printer until it stops. Hold the tray with both hands, lift the front slightly, and remove it from the printer.

Squeeze the length guide and slide it to the edge of the tray. Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the stack on a level surface. Place the print media into the tray with the recommended print side face up. NOTE: Do not exceed the maximum fill line in the tray. Slide the width guides and length guide until they rest lightly against the edge of the print media stack. Insert the tray into the printer, and push until it stops.

If you load any print media into the tray, configure the Paper Type settings for that tray according to the message on the operator panel. Loading the Multipurpose Feeder In addition to plain paper, the multipurpose feeder can use various other sizes and types of print media such as envelopes and transparencies. Gently pull open the multipurpose feeder cover, and pull out the extension tray. Slide the width guides to the edge of the tray. Select print media source, size, and type in your software program and select the print media size and type on the printer operator panel. For tips on recommended print media, solving printing problems, and clearing jams, see the. 8.66 inches (220 mm) in width in the multipurpose feeder, insert the envelopes with the flaps closed and the short-edge of the envelopes facing into the printer.

The print side must be facing down. You can load envelopes up to the maximum fill line in the tray at one time. Loading Paper. Section 2 Setting Up for Local Printing Installing Printer Drivers Setting Up for Local Printing. A local printer is a printer attached to your computer or a print server using a USB or parallel cable.

If your printer is attached to a network and not your computer, see 'Setting Up for Network Printing' on page 23. Click Personal Installation. On the Add Printer screen, select the port name from the Port Name combo box, and then set the printer's options under Printer Configuration.

Select either the Typical Installation or Custom Installation checkbox, and then click Next. Setting Up for Local Printing. Section 3 Setting Up for Network Printing Network Set-Up Setting Up for Network Printing. Network Set-Up NOTE: To use this printer in a UNIX or Linux environment, you need to install a UX Filter or Linux Driver. For more information on how to install and use these, refer to your User’s Guide.

NOTE: When using a CD drive in a Linux environment, you need to mount the CD according to your system environment. If you want to set a printer as the default, select the printer and then click the Set this printer as default check box. Web browser, and the printer configuration appears on the screen. Refer to your more information. You can set up the Dell Printer Configuration Web Tool to send you an email when the printer needs supplies or intervention.

To set up e-mail alerts: Launch the Dell Printer Configuration Web Tool. Sec tion4 Installing the Printer Driver or PPD File on Macintosh Computers Installing the AdobePS Printer Driver (Mac OS 9.x) Installing the PPD File (Mac OS X) Installing the Printer Driver or PPD File on Macintosh Computers. Installing the AdobePS Printer Driver (Mac OS 9.x) There are two steps to install the printer driver. First, you must use the installer included in the Drivers and Utilities CD to install the printer driver to Macintosh.

Then configure the printer driver according to the connection type. Close the Chooser. Setting the Printer Driver (for USB Connection) If the printer is connected to your computer via a USB port, you will have to launch the Desktop Printer Utility and register the printer as a Desktop Printer. Turn on the printer. NOTE: The Desktop Printer Utility is located in the AdobePS Components folder on your Macintosh HD.

If there is no Desktop Printer Utility in the AdobePS Components folder, install Adobe PS 8.8 by using Full Installation. Select AdobePS from the With list box, and select Printer (LPR) in Create Desktop list, then click OK. Installing the PPD File (Mac OS X) NOTE: The printer driver does not need to be installed on a Mac OS X. It uses a generic PostScript driver that is provided with the OS.

Drivers and Utilities Insert the Drivers and Utilities Launch the Double-click the Mac OS X folder, and then double-click the Dell 5100cn Installer icon. Select IP Printing from the menu, and type the IP address for the printer being used in Printer’s Address.

Select Dell from Printer Model, and confirm Dell Laser Printer 5100cn is selected for the Model Name. If it is not selected, select it.

Section 5 Using Your Printer Changing Printer Settings Adjusting the Language Printing a Job Canceling a Job From the Printer Operator Panel Software Overview Using Your Printer. You can select menu items and corresponding values from the operator panel. When you first enter the printer menus from the operator panel, you see an asterisk (.) next to a value in the menus. This asterisk indicates the factory default menu setting. These settings are the original printer settings. The password has been changed. NOTE: If you forget your password, turn off the printer.

Then, while holding the Menu button, turn on the printer. This will recover the factory default menu settings. The factory default panel password is 0000. Canceling the Job From a Computer Canceling a Job From the Taskbar When you send a job to print, a small printer icon appears in the right corner of the taskbar. Double-click the printer icon. A list of print jobs appears in the printer window.

Window or Dell Printer Configuration Web Tool for a particular printer. Select Help to read the online help. The Status Monitor Console displays the Status Window for local connections, or the Dell Printer Configuration Web Tool for network connections. Using Your Printer. Install in advance the Dell Laser Printer 5100cn printer driver in the computer on which the setup disk is to be created. Section 6 Maintenance Replacing the Imaging Drum Replacing the Toner Cartridge Replacing the Transfer Roller Replacing the Fuser and Separator Roller Cleaning the Automatic Density Control (ADC) Sensor Maintenance.

To order by phone, see 'Order Printer Supplies' on page 2. Dell recommends Dell cartridges for your printer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell. Please cover the removed imaging drum by a newspaper or so not to expose the direct light. CAUTION: Do not touch inside the printer with your hands. Some parts may be hot.

Dell Laser Printer 5100 Cn Manual

Allow time for the printer to cool before attempting to remove parts in this area. NOTICE: Lowering the imaging drum into the printer without correctly aligning the rollers with the slots can damage the imaging drum. NOTICE: Do not allow the surface covered with a protective sheet to come into contact with anything.

Pull the protective cover on the imaging drum straight up to remove it. Dell toner cartridge are available only through Dell. You can order more toner online at or by phone.

To order by phone, see 'Order Printer Supplies' on page 2. Pull out the toner cartridge. Installing the New Toner Cartridge Select the new toner cartridge whose color matches the cartridge carrier and remove it from its packaging. Gently shake the cartridge to distribute the toner evenly. Align the toner cartridge with the corresponding cartridge carrier in the printer and insert it. Grip the levers at each end of the toner cartridge, then push down firmly to rotate the levers forward.

If it takes more than five seconds to remove the toner seal after inserting the toner cartridge in the printer, an error message may appear. In this case, perform step 4 again, or turn the printer off once and then on again. To order by phone, see'Order Printer Supplies' on page 2. Dell recommends Dell transfer roller for your printer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell. Installing the New Transfer Roller Unpack a new transfer roller and grip the tabs as shown.

Align the arrow marks on the transfer roller to the marks on the printer, and gently push the roller into the printer. To lock the transfer roller into the printer, push down the tabs until you hear a click. Close the front cover. To order by phone, see 'Order Printer Supplies' on page 2. Dell recommends Dell fuser for your printer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

Lift up the levers next to both ends of the fuser. Grip the knobs and gently lift the fuser out of the printer.

Installing the New Fuser Unpack a new fuser, grip the fuser by the knobs, align it with the slots in the printer, and slowly push it in. Completely push down the fuser by holding the knobs at both ends of the fuser until the levers next to both ends of the fuser return to their original position.

Remove any print jobs from the tray before pulling the tray out of the printer. Pull the tray out of the printer until it stops. Hold the tray with both hands, lift the front slightly, and remove it from the printer. Gently raise the separator roller assembly, and slide it to the left. Installing the New Separator Roller Align the holes of the new separator roller with the projections in the tray and slide the separator roller until it stops.

Then, release your hand from the separator roller. Close the separator roller cover. Replace the printer's tray into the printer.

When the printer's automatic density control (ADC) sensor is dirty, follow the procedure below to clean it. Turn off the printer. Push the front latch up and fully open the front cover.

Grip the tabs at both ends of the transfer roller and gently lift it out of the printer. Gently wipe the automatic density control (ADC) sensor window with a clean dry cloth or cotton swab. NOTE: Do not allow anything hard to come in contact with the automatic density control (ADC) sensor window. Do not use excessive force to clean the window. Replace the transfer roller. Align the arrow marks on the transfer roller to the marks on the printer, and gently push the roller into the printer. To lock the transfer roller into the printer, push down the tabs until you hear a click.

Close the front cover. Turn on the printer. Maintenance. Section 7 Appendix Technical Assistance Automated Order-Status Service Contacting Dell U.S. Terms and Conditions of Sale Limited Warranties and Return Policy Dell Inc. Ink and Toner Cartridges Limited Warranties Dell™ Software License Agreement Regulatory Appendix.

Automated Order-Status Service To check on the status of any Dell™ products that you have ordered, you can go to support.dell.com, or you can call the automated order-status service. A recording prompts you for the information needed to locate and report on your order. See 'Contacting Dell' on page 63 for the telephone number to call for your region. Toll-free numbers are for use within the country for which they are listed. When you need to contact Dell, use the electronic addresses, telephone numbers, and codes provided in the following table. If you need assistance in determining which codes to use, contact a local or an international operator.

International Access Code Country Code City Code Australia (Sydney) E-mail (Australia): autechsupport@dell.com International Access Code: 0011 E-mail (New Zealand): nztechsupport@dell.com Country Code: 61 Home and Small Business City Code: 2 Government and Business Preferred Accounts Division (PAD) For servers and storage.

Dell 5100cn Driver Download – The Dell Color Laser Printer 5100CN is a robust, standard network and duplex printing capability that provides excellent value for both small and large companies in terms of acquisition and operating costs. Designed for high-volume printing, the Dell 5100CN offers a print speed of up to 35 pages (black and white) or 25 pages (color) per minute, as well as a monthly print capacity of 90,000 pages and a feed capacity of 2150 sheets.

In particular, wear parts are checked and overhauled, an extensive cleaning is carried out inside and out and finally all functions are tested again in detail. Articles as described above as well as Addl. The Dell 5100cn product manuals, Dell 5100cn software drivers, and PC connection cables are not included. Software drivers and manuals can be obtained free of charge from the respective manufacturer’s pages on the Internet or on this Dell 5100cn driver page. The manufacturers usually keep the latest drivers and manuals available for free download on their websites. You can Download Dell 5100CN Driver from this page, or get printer for another lower printer series drivers from Dell. If you do not find what you are looking for please contact us.

Dell 5100cn Driver Dell 5100cn Driver Compatibility OS Driver printer and scanner dell 5100cn for OS Compatibility. Windows 7 32 bit (x86).

Windows 7 64 bit (x64). Windows 8 32 bit (x86). Windows 8 64 bit (x64). Windows 8.1 32 bit (x86). Windows 8.1 64 bit (x64).

Windows 10 32 bit (x86). Windows 10 64 bit (x64).

Mac OS X 10.8. Mac OS X 10.9. Mac OS X 10.10. Mac OS X 10.11. Mac OS X 10.12 did not find any driver Windows for your Dell 5100cn printer? For an alternative, you can install older Dell 5100cn printer driver in compatibility mode, so can work with some or all of the functions of the printer. But unfortunately, the Dell 5100cn driver does not support for Linux.

How to Use Dell 5100cn Driver Compatibility mode. First, select the Dell 5100cn driver installer, and then right-click and select ‘Properties’. After that navigate to the tab ‘Compatibility’. Then in the Compatibility mode, check the “Run this program in compatibility mode for ‘and click the drop down menu to select a version of Windows (Windows 10 / 8.1 / 8/7 / XP) that you remembered the capability with the software. When finished click OK to save the changes.

Please note, this only works for users that you use only. If you have more than one user, you must click the ‘Change settings for all users’ like you do on when installing the driver. Download Dell 5100cn color laser Printer Driver Dell 5100cn Driver for Windows Dell 5100cn Driver Printers Windows 32bit Dell Laser Printer 5100cn, v., A05 File Name: DELLLASER-PRINTER-5100CNA05R239000.exe Size: 9.68 MB Version: A05 Dell 5100cn Driver Printers Windows 64bit Dell Laser Printer 5100cn, v., A05 File Name: DELLLASER-PRINTER-5100CNA05R238986.exe Size: 10.7 MB Version: A05 Dell 5100cn Driver for Mac OS X Dell 5100cn color laser Driver Printers Dell Laser Printer 5100cn, v.2, A00 File Name: Gassan-Mac-9-MR2RC2.sit Size: 16.13 MB Version: 2,A00.
